Interlocking Nail

Home Orthopaedics Implants Interlocking Nail

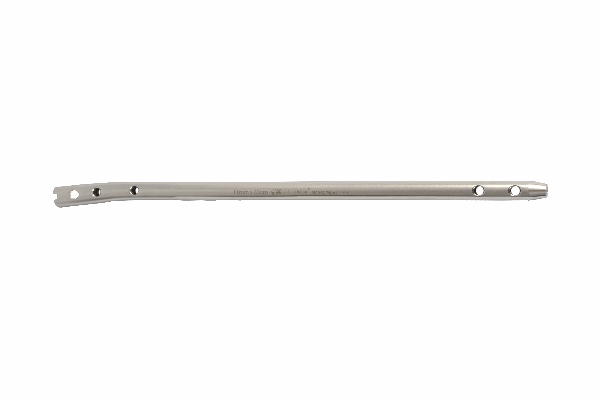

Interlocking Nail For Humerus - Cannulated

Intended Use : For Intramedullary Fixation & Locking of Humerus Fracture
Profile : For 6mm & 7mm Proximal Hole Dia. 3.5mm -Distal Hole Dia. 2.7mm
For 8mm Promimal & Distal Hole Dia. 3.5mm
Nail Diameter : 6mm, 7mm, 8mm Cannulated
Size : 20cm to 30cm - 1cm diff.

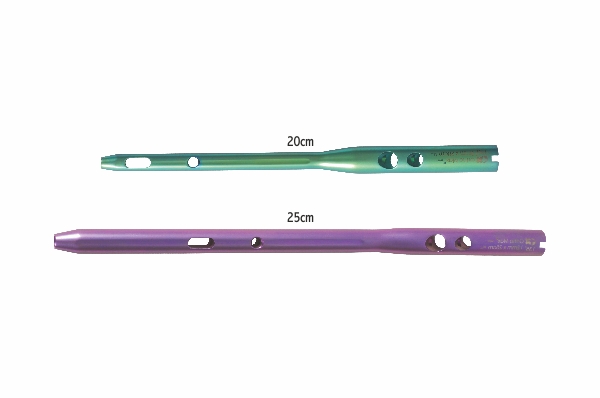

Proximal Femoral Nail (PFN) - Short

Intended Use : For Intramedullary Fixation & Locking of Proximal Femur Fracture
Profile : 3mm Gun drill hole Cannulation, Hip Screws 6.4mm & 8mm Dia. Distal Screws 4.9mm Dia.
Nail Diameter : 9mm, 10mm, 11mm & 12mm
Size : 130°, 135° x 20cm & 25cm

Proximal Femoral Nail (PFN)- Long

Intended Use : For Intramedullary Fixation & Locking of Proximal & Shaft Femur Fracture
Profile : 3mm Gun drill hole Cannulation, Hip Screws Dia. 6.4mm & 8mm Distal Screws 4.9mm
Nail Diameter : 9mm, 10mm, 11mm & 12mm
Size : Left & Right - 135° x 32cm & 44cm - 2cm diff.

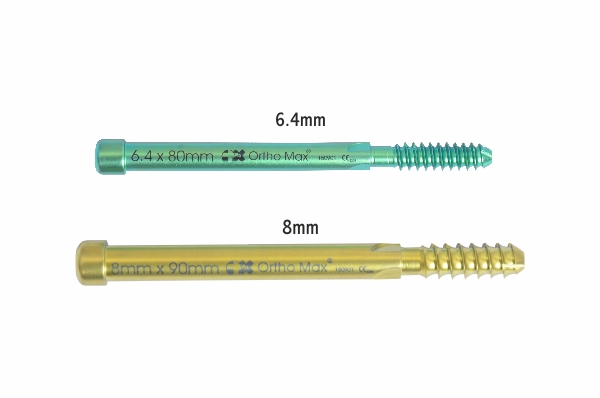

Lag Screw for PFN

Intended Use : To be used with PFN in Hip
Profile : 2mm hole cannulation in 6.4mm, 2.5mm hole cannulation in 8mm
Size : 60mm to 120mm - 5mm diff.

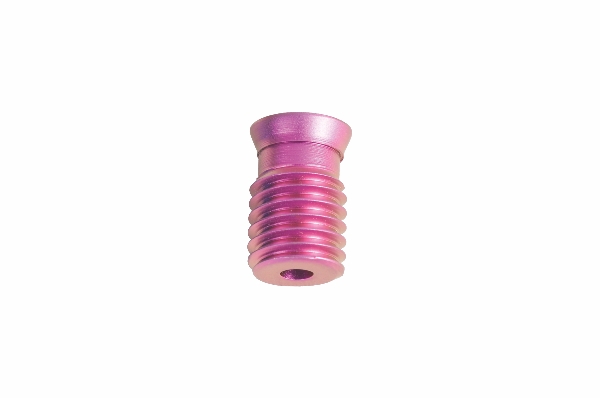

PFN Cap

Intended Use : To be used with PFN in plug threaded hole
Profile : Head 10mm dia, Length 15mm

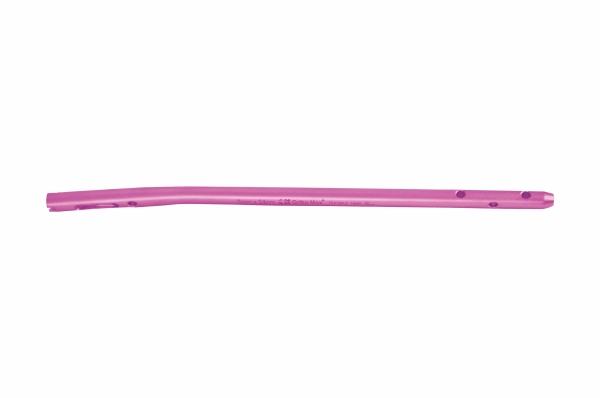

Interlocking Nail For Femur -"Universal" Cannulated

Intended Use : For Intramedullary Fixation & Locking of Femur Shaft Fracture
Profile : 3mm Gun Drill Hole Cannulation, 4.9mm Hole Dia.
Nail Diameter : 9mm, 10mm, 11mm & 12mm
Size : 32cm to 46cm - 2cm diff.

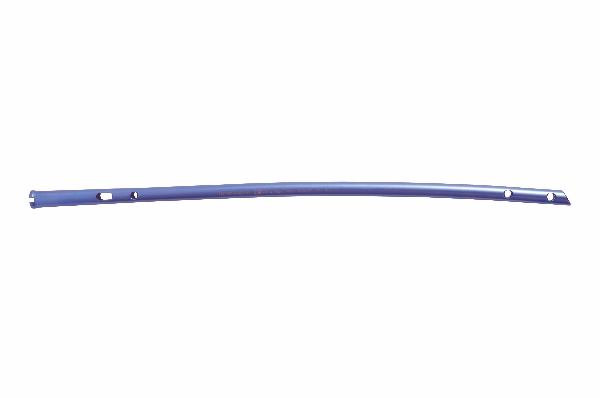

Interlocking Nail For Tibia -"Modified" Cannulated

Intended Use : For Intramedullary Fixation & Locking of Tibial Shaft Fracture
Profile : 2.5mm Gun Drill hole cannulation, 3.5mm hole dia. for 8mm, 4.9mm Hole dia. For 9,10mm
Nail Diameter : 8mm, 9mm & 10mm
Size : 28cm to 40cm - 2cm diff.

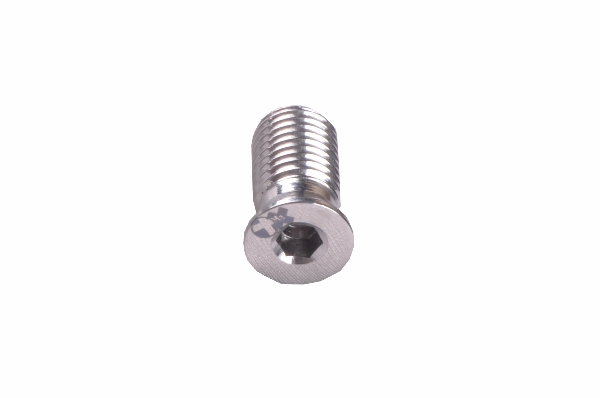

Interlocking Nail Cap

Intended Use : To be used with interlocking nails to plug threaded hole
Profile : Head dia. 9mm, Length 15mm

Intramedullary Supracondylar Nails - Cannulated

Intended Use : For Intramedullary Fixation of Supracondylar Femur Fracture
Profile : Proximal & Distal Hole Dia. 4.9mm
Nail Diameter : 9mm, 10mm, 11mm & 12mm
Size : 15cm, 20cm, 25cm, 30cm, 35cm, 40cm

IMSC Nail’s Cap

Intended Use : To be used with IMSC nails to plug threaded hole
Profile : Head dia. 9mm, Length 15mm

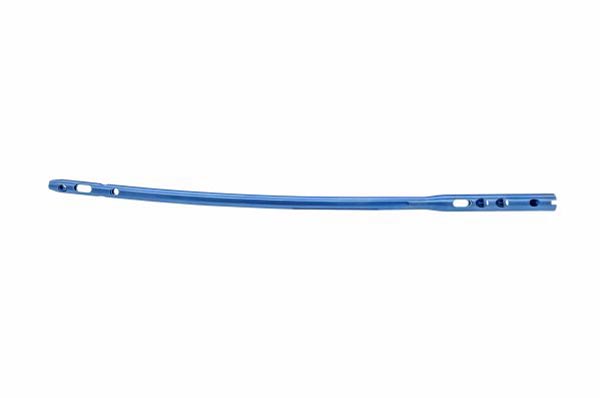

Ultra Lock® Nails For Tibia Cannulated

Intended Use : For Intramedullary Fixation & Locking of Proximal & Distal Tibial Fracture
Profile : 2.5mm Gun Drill hole cannulation Proximal dia. 11mm, 4.9mm Hole dia. For 8, 9, 10, 11mm (3.5mm Distal hole dia. for 8mm)
Nail Diameter : 8mm, 9mm, 10mm & 11mm
Size : 28cm to 40cm - 2cm diff.

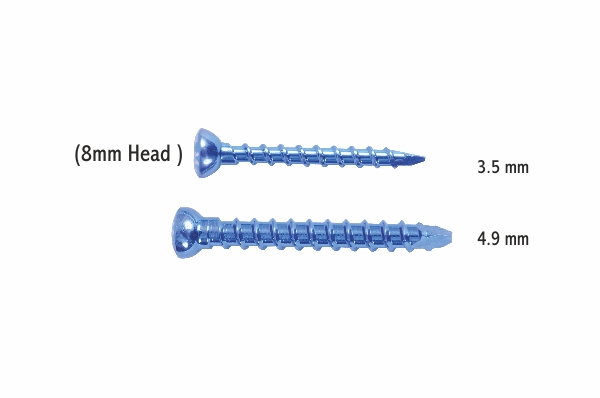

Interlocking Screw

Intended Use : For Locking Nails in Bi-Cortical Fixation
Profile : Core Dia 2.7mm for 3.5mm, 4.0 for 4.9mm
Screw Diameter : 3.5mm (For 8mm Distal Hole only) & 4.9mm (For 8, 9, 10, 11mm Nails)
Size : 3.5mm x 24mm to 50mm, 4.9mm x 24mm to 50mm - 2mm diff. 55mm to 80mm - 5mm diff

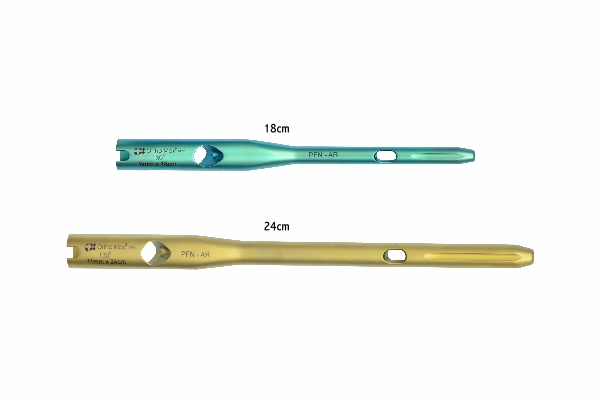

PFN AR Short Nails

Intended Use : For Intramedullary Fixation & Locking of Proximal Femur Fracture
Profile : Proximal 16mm Dia., Hip Blade 10.5mm Dia. Distal Screws 4.9mm Dia.
Nail Diameter : 9mm, 10mm, 11mm & 12mm
Size : 130° x 18cm & 24cm Long

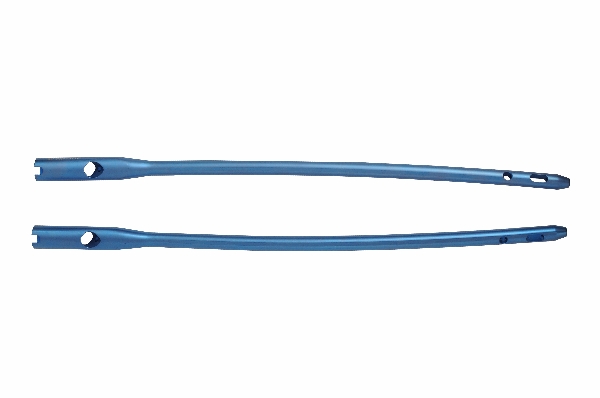

PFN AR Long Nails

Intended Use : For Intramedullary Fixation & Locking of Proximal & Shaft Femur Fracture
Profile : Proximal 16mm Dia., Hip Blade 10.5mm Dia. Distal Screws 4.9mm Dia.
Nail Diameter : 9mm, 10mm, 11mm & 12mm
Size : 130° x 32cm & 44cm - 2cm diff.

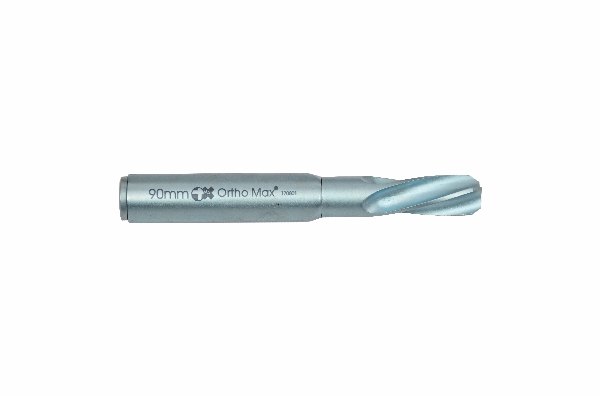

PFN AR Blades

Intended Use : To be used with PFN-AR Nail in Hip
Profile : 10.5mm dia. with 3.2mm hole cannulation
Size : 70mm to 120mm - 5mm diff.

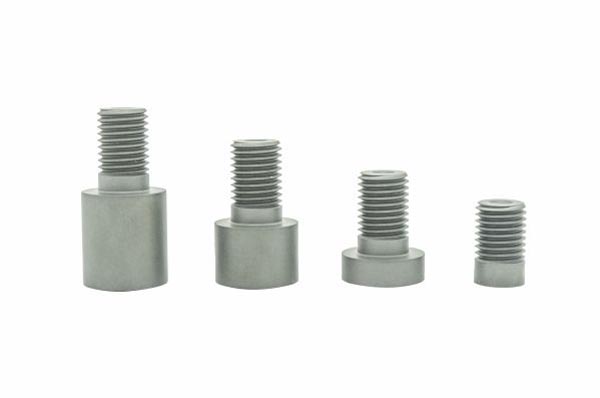

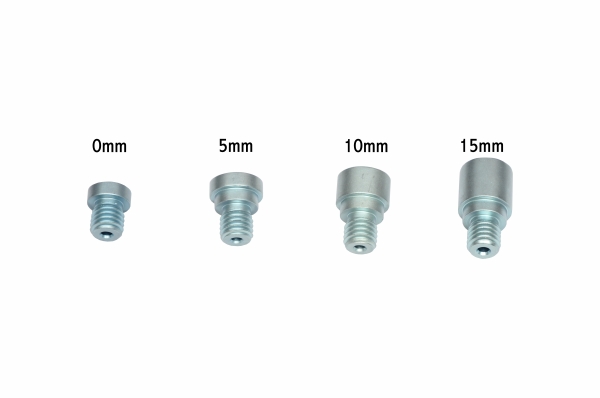

PFN AR End Cap

Intended Use : To be used with PFN AR nails to plug in threaded hole
Profile : Length 0, 5, 10, 15mm

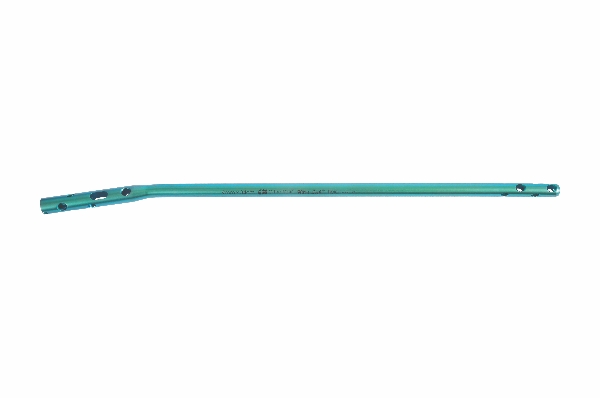

Ultralock® femur Nail

Intended Use : For Intramedullary Fixation & Locking of Proximal & Shaft Femur Fracture
Profile : Proximal 13mm Dia., Hip Screw 6.4mm Dia. Distal Screws 4.9mm Dia.
Nail Diameter : 9mm, 10mm, 11mm & 12mm
Size : 135° x 32cm & 44cm - 2cm diff.

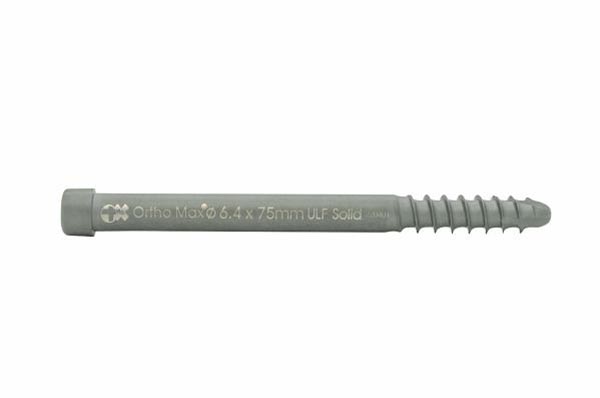

Hip Screw Soild

Intended Use : To be used with PFN-AR Nail in Hip
Profile : 6.4mm dia. Solid
Size : 60mm to 110mm - 5mm diff.

Ultralock® femur Nail End cap

Intended Use : To be used with PFN AR nails to plug in threaded hole
Profile : Length 0, 5, 10, 15mm

Catalogue - for more technical details
