Non Locking Plates

Home Orthopaedics Implants Bone Plate Non Locking Plates

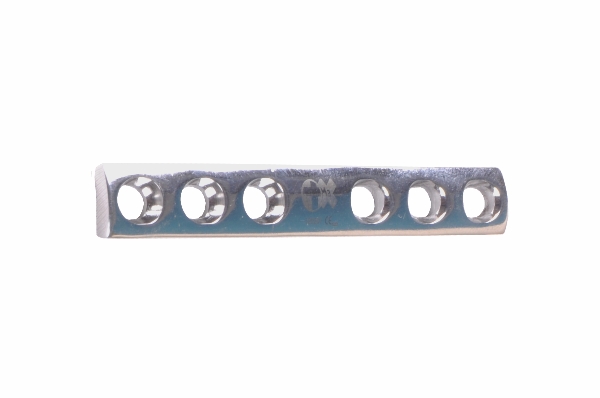

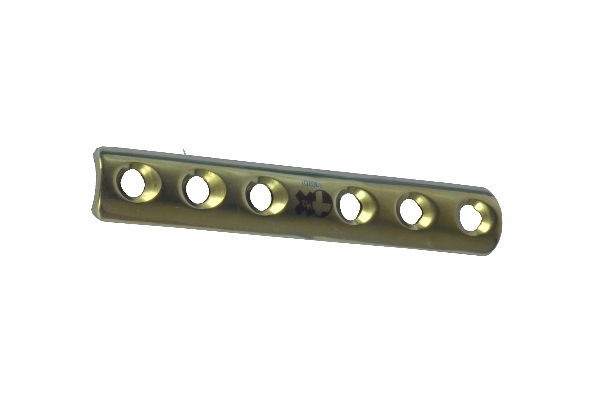

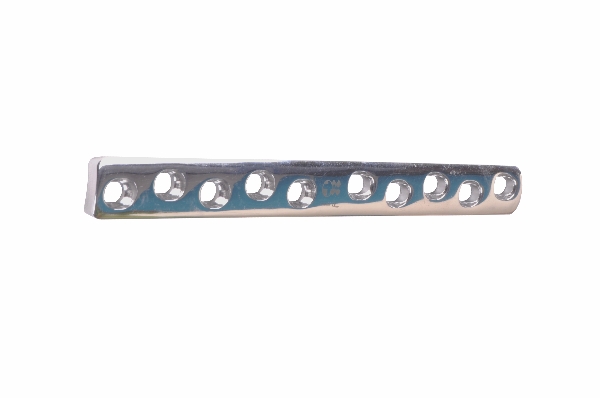

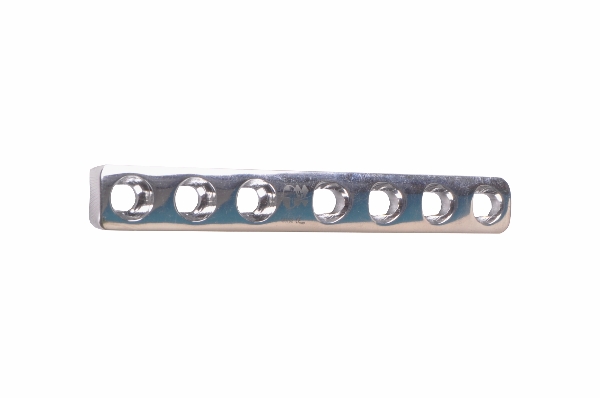

Dynamic Compression Plates (DCP) - Thin For Radius/Ulna - 10 mm Wide

Intended Use : For Internal Fracture Fixation of Radius & Ulna with Bone Screws
Profile : 10mm x 3.2mm, 3.5mm Compatible Hole
Material : SS 316L & Titanium

Dynamic Compression Plates (DCP) - Narrow For Tibia - 12 mm Wide

Intended Use : For Internal Fracture Fixation of Tibia with Bone Screws
Profile : 12mm x 4mm, 4.5mm Compatible Hole
Material : SS 316L & Titanium

Dynamic Compression Plates (DCP) - Broad For Femur - 16 mm Wide

Intended Use : For Internal Fracture Fixation of Femur with Bone Screws
Profile : 16mm x 4.5mm, 4.5mm Compatible Hole
Material : SS 316L & Titanium

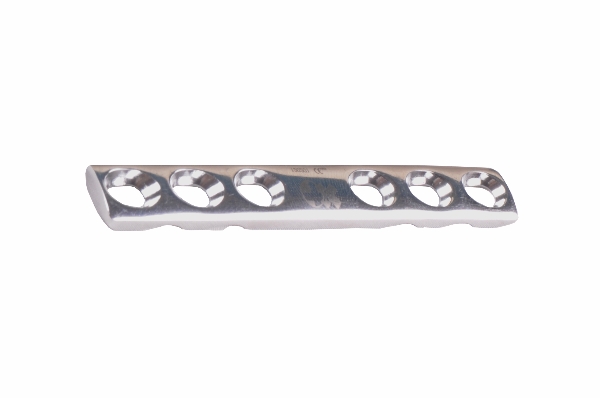

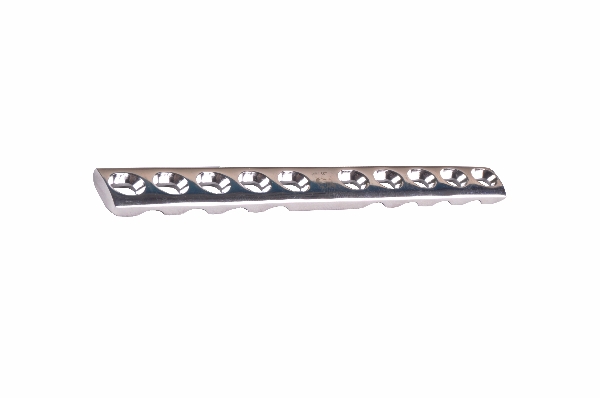

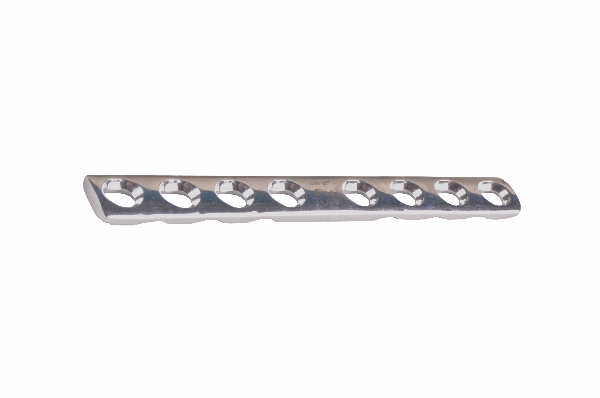

LOW CONTACT DYNAMIC COMPRESSION PLATES (LCDCP) - Thin For Radius/Ulna - 10 mm Wide

Intended Use : For Internal Fracture Fixation of Radius & Ulna with Bone Screws
Profile : 10mm x 3.2mm, 3.5mm Compatible Hole
Material : SS 316L

LOW CONTACT DYNAMIC COMPRESSION PLATES (LCDCP) - Narrow For Tibia/ Humerus - 12 mm Wide

Intended Use : For Internal Fracture Fixation of Tibia with Bone Screws
Profile : 12mm x 4mm, 4.5mm Compatible Hole
Material : SS 316L

LOW CONTACT DYNAMIC COMPRESSION PLATES (LCDCP) - Broad For Femur - 16 mm Wide

Intended Use : For Internal Fracture Fixation of Femur with Bone Screws
Profile : 16mm x 4.5mm, 4.5mm Compatible Hole
Material : SS 316L

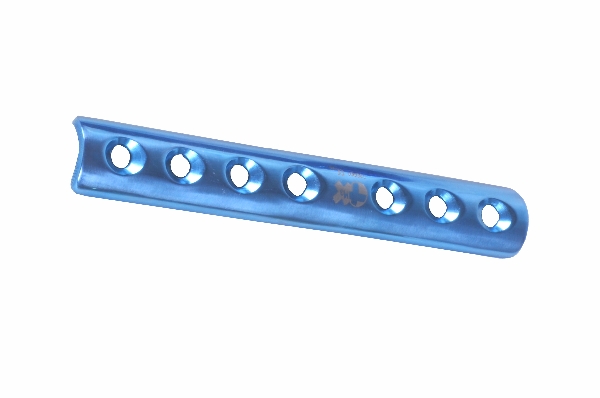

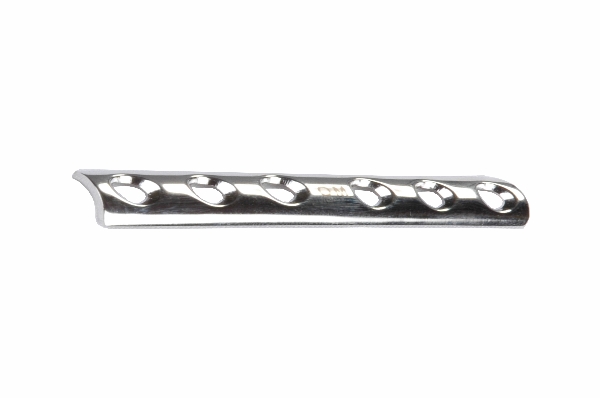

1/3 Tubular Plates

Intended Use : For Internal Fracture Fixation of Radius & Ulna with Bone Screws
Profile : 10mm x 1.5mm, 3.5mm Compatible Hole
Material : SS 316L

1/4 Tubular

Intended Use : For Internal Fracture Fixation of Radius & Ulna or Fibula with Bone Screws
Profile : 8mm x 1.5mm, 3.5mm Compatible Hole
Material : SS 316L

Semitubular Plates

Intended Use : For Internal Fracture Fixation of Radius & Ulna with Bone Screws
Profile : 12mm x 2mm, 3.5mm Compatible Hole
Material : SS 316L & Titanium

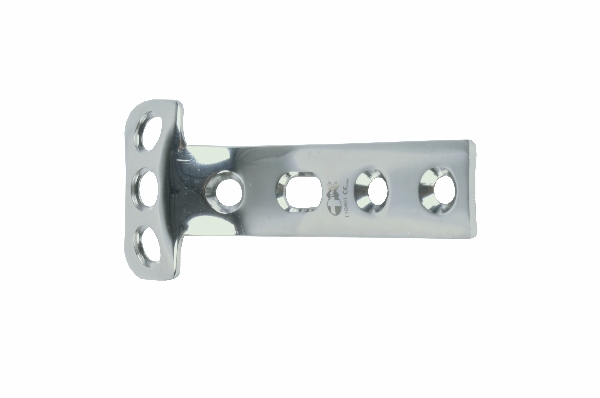

Buttress 'T' Plates

Intended Use : For Internal Fracture Fixation of Tibial Condyle with Bone Screws
Profile : 16mm x 2.5mm, 4.5mm Compatible Hole
Material : SS 316L

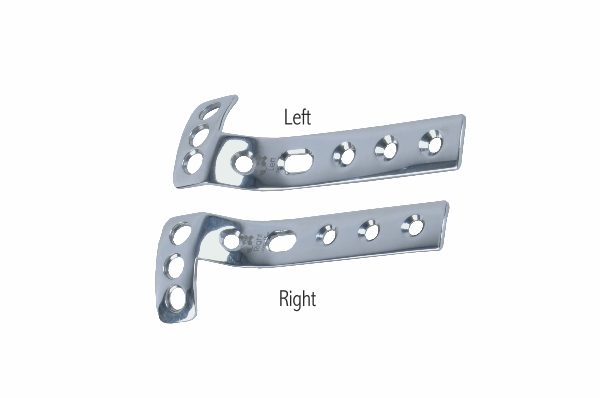

Buttress 'L' Plates - Right or Left

Intended Use : For Internal Fracture Fixation of Proxima Humerus & Tibial with Bone Screws
Profile : 16mm x 2.5mm, 4.5mm Compatible Hole
Material : SS 316L

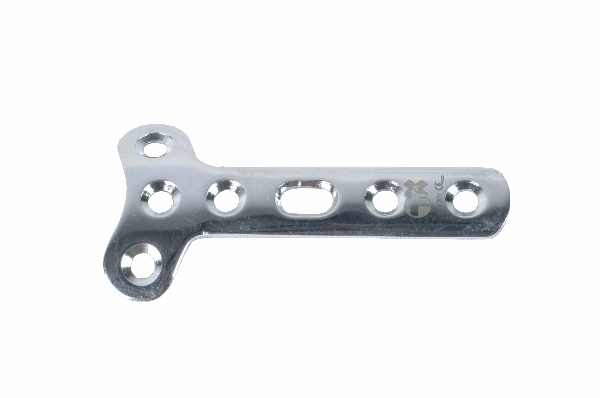

T' Plates For Distal Radius

Intended Use : For Internal Fracture Fixation of Distal Radial Head with Bone Screws
Profile : 10mm x 2.5mm, 3.5mm Compatible Hole
Material : SS 316L

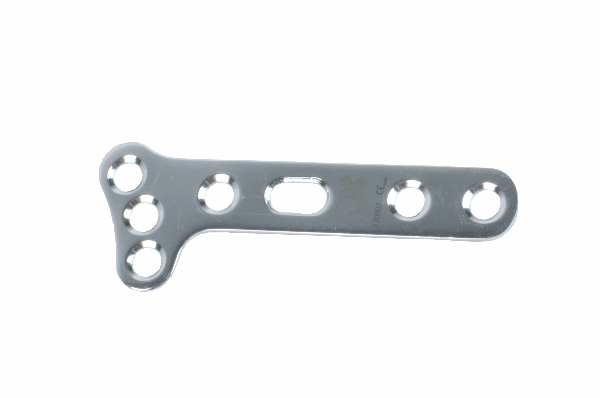

Oblique 'T' Plates For Distal Radius

Intended Use : For Internal Fracture Fixation of Distal Radial Head with Bone Screws
Profile : 10mm x 2.5mm, 3.5mm Compatible Hole
Material : SS 316L

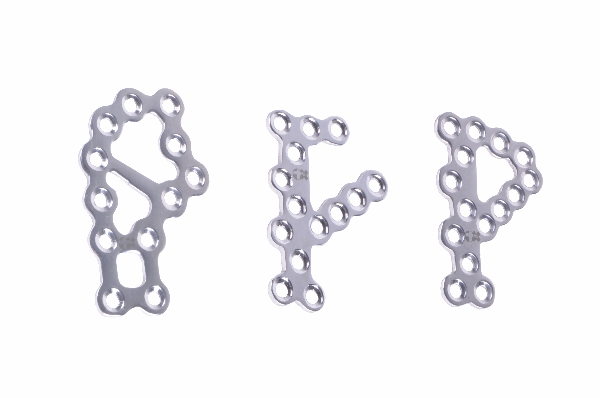

Calcaneal Plates P, D, F

Intended Use : For Internal Fracture Fixation of Calcaneal Bone in Foot with Bone Screws
Profile : 10mm x 2mm, 4.5mm Screws Compatible
Material : SS 316L

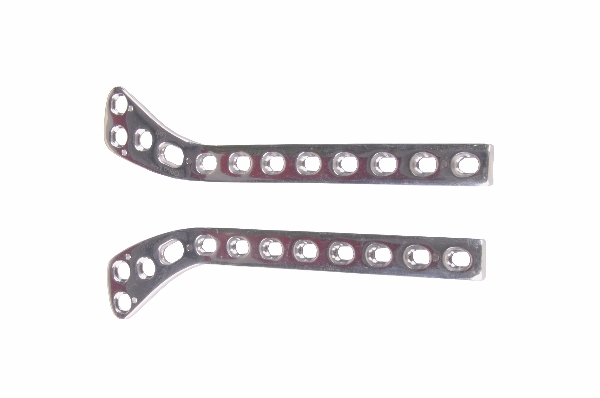

Lateral Tibial Head Plates - Left or Right

Intended Use : For Internal Fracture Fixation of Tibial Condyle with Bone Screws
Profile : 14mm x 4.5mm, 4.5mm Screws Compatible in Shaft, 6.5mm Compatible in Head
Material : SS 316L

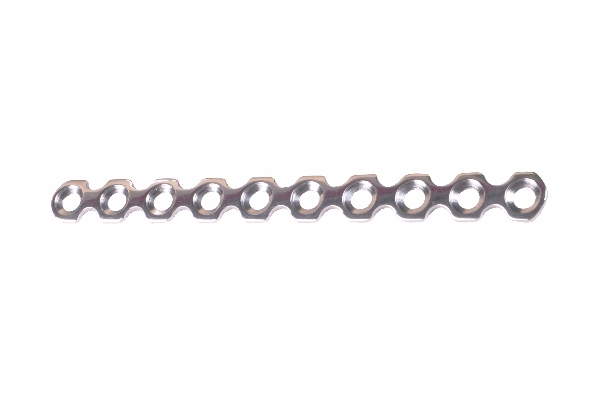

Reconstruction Plates - Round Holes - 3.5mm

Intended Use : For Internal Fracture Fixation of Pelvic with Bone Screws
Profile : 10mm x 2.5mm Profile, 3.5mm Compatilbe
Material : SS 316L

Reconstruction Plates - D.C. Holes - 3.5mm

Intended Use : For Internal Fracture Fixation of Pelvic with Bone Screws
Profile : 10mm x 2.5mm Profile, 3.5mm Compatilbe
Material : SS 316L & Titanium

Reconstruction Plates - Round Holes - 4.5mm

Intended Use : For Internal Fracture Fixation of Pelvic with Bone Screws
Profile : 12mm x 2mm, 4.5mm Compatilbe
Material : SS 316L & Titanium

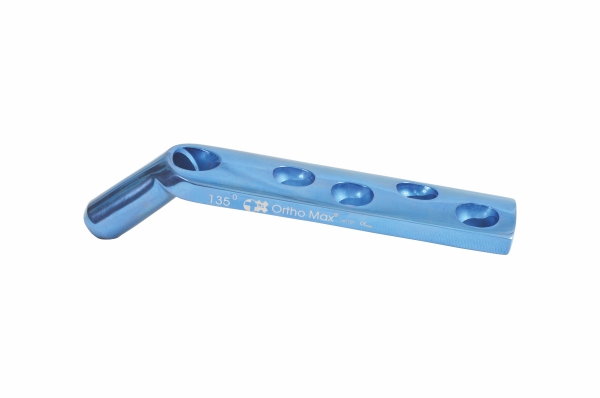

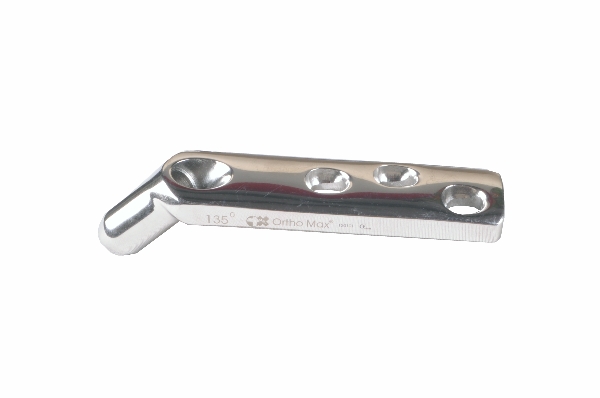

Richard's Barrel Plates Dhs Type - D.C. Holes

Intended Use : For Trochanter Fracture Fixation with Hip Screws
Profile : 19mm x 6mm, 32mm Barrel Length, 12.5mm Barrel Dia, 4.5mm Screws Compatuble
Material : SS 316L & Titanium

Richard's Barrel Plates Dhs Type - D.C. Holes Short Neck

Intended Use : For Trochanter Fracture Fixation with Hip Screws
Profile : 19mm x 6mm, 25mm Barrel Length, 12.5mm Barrel Dia, 4.5mm Screws Compatuble
Material : SS 316L

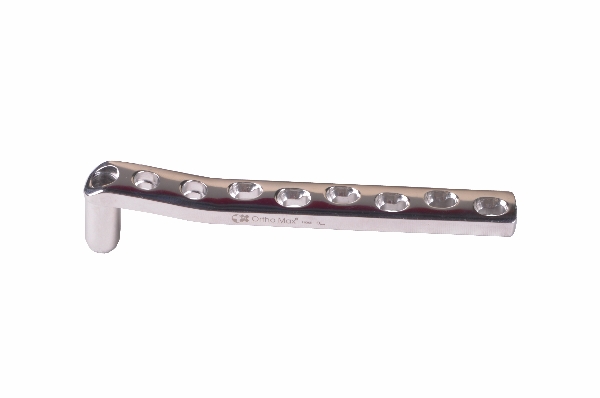

95* DCS Barrel Plates DHS Type - D.C. Holes

Intended Use : For Condylar Fracture Fixation of Lower End Femur with Hip Screws
Profile : 16mm x 6mm, 25mm Barrel Length, 12.5mm Barrel Dia, 4.5mm Screws Compatuble
Material : SS 316L

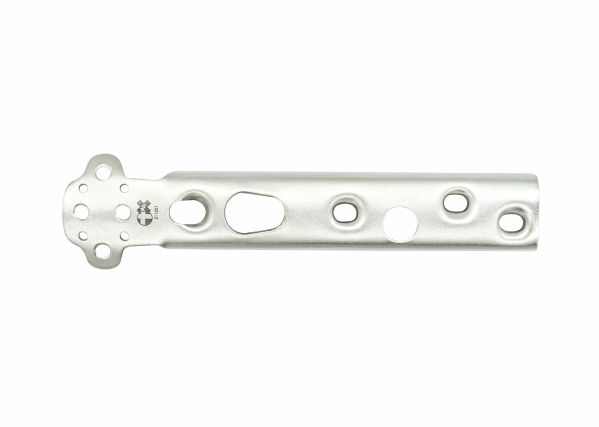

Trochanter Stabilisation Plates (TSP)

Intended Use : For Fixation of Lateral part of Greater Trochanter with DHS
Profile : 23mm, 4 mm in Proximal part & 4.5 Screws Compatible, 0.8mm thread pitch
Material : SS 316L

Non Locking Plates

Catalogue - for more technical details
