Non Locking Screws

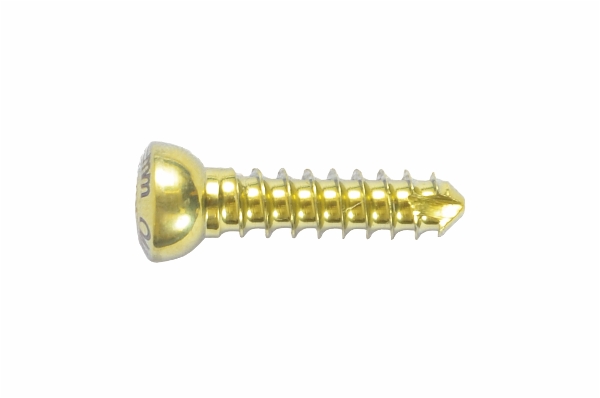

Cortical Screw - 2.7mm

Intended Use : For Internal Fixation with Bone Plate
Profile : Core dia. 2mm, 24 TPI, 2mm Hex. Self Tapping
Material : SS 316L & Titanium

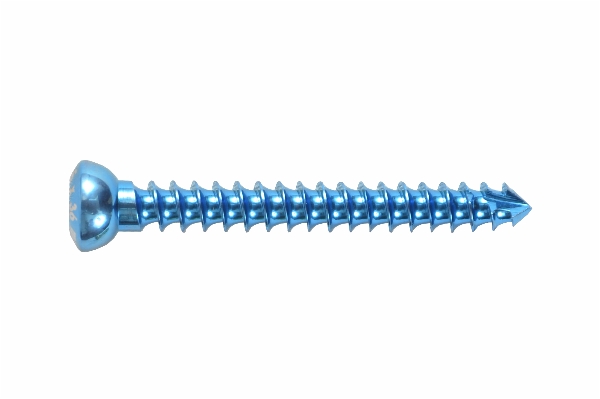

Cortical Screw - 3.5mm

Intended Use : For Internal Fixation with Bone Plate
Profile : Core dia. 2.7mm for 20 TPI - 2.5mm for 14tpi 2.5mm Hex., Self Tapping
Material : SS 316L & Titanium

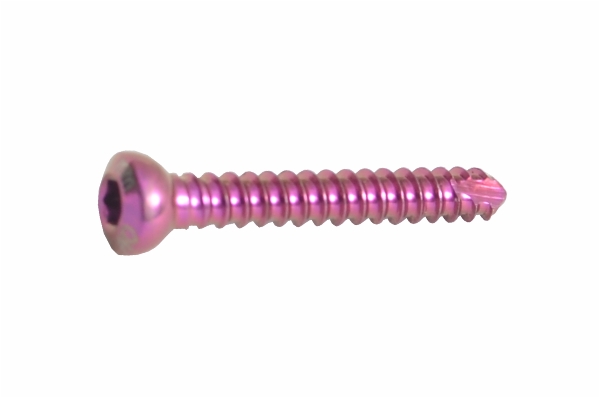

Cortical Screw - 4.5mm

Intended Use : For Internal Fixation with Bone Plate in Large Fragment
Profile : Core dia. 3.2mm, 14 TPI - 3.5mm Hex., Self Tapping
Material : SS 316L & Titanium

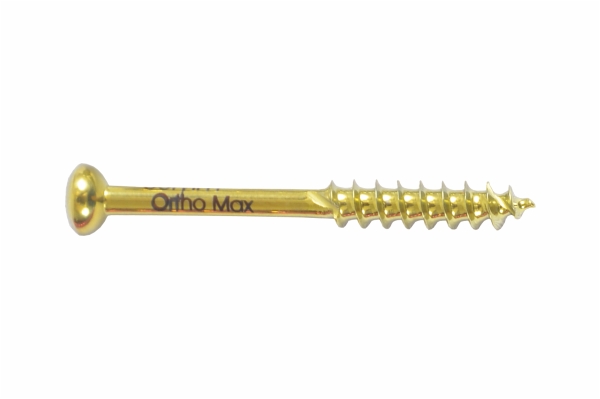

Cancellous Screw - 4mm Short Thread

Intended Use : For Subcondylar Fracture Fixation in Humerus / Tibia
Profile : Core Dia., 2.5mm, 2.5mm Hex14 TPI
Material : SS 316L & Titanium

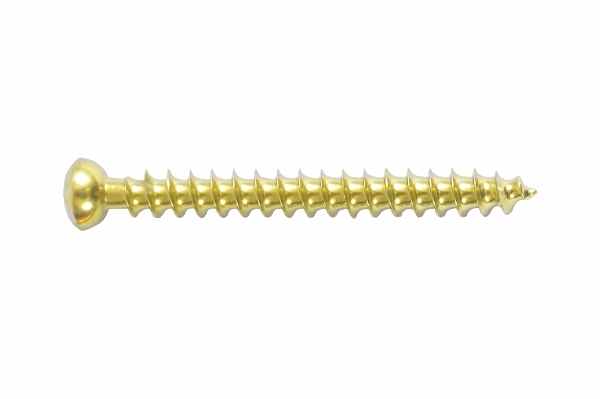

Cancellous Screw - 4mm Full Thread

Intended Use : For Subcondylar Fracture Fixation in Humerus / Tibia
Profile : Core Dia., 2.5mm, 2.5mm Hex14 TPI
Material : SS 316L & Titanium

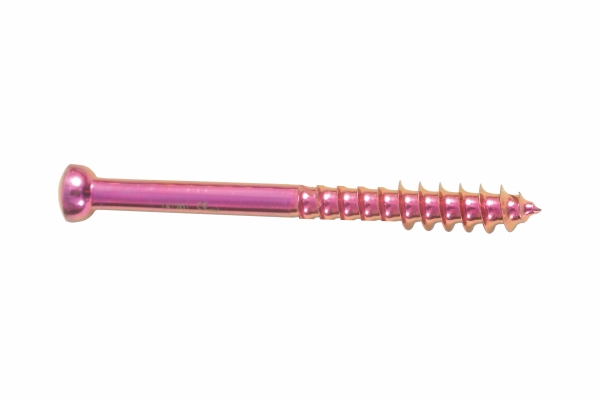

Cancellous Screw - 6.5mm 16mm Thread

Intended Use : For Hip / Femoral Neck / Tibial Condylar Fracture Fixation
Profile : Core Dia 4.5mm, 3.5mm Hex. 9 TPI
Material : SS 316L & Titanium

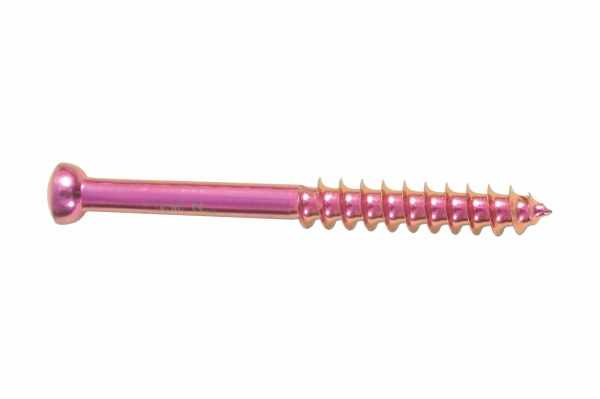

Cancellous Screw - 6.5mm 32mm Thread

Intended Use : For Hip / Femoral Neck / Tibial Condylar Fracture Fixation
Profile : Core Dia 4.5mm, 3.5mm Hex. 9 TPI
Material : SS 316L & Titanium

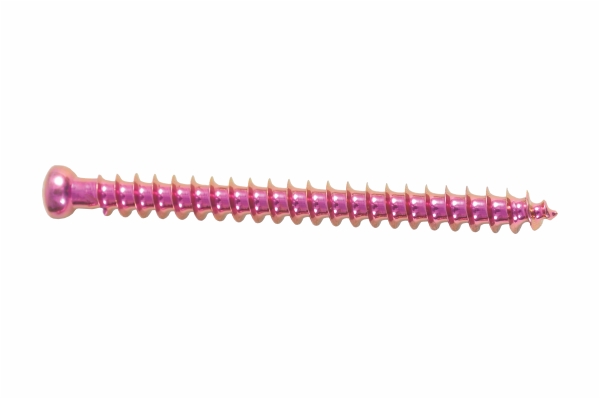

Cancellous Screw - 6.5mm Full Thread

Intended Use : For Hip / Femoral Neck / Tibial Condylar Fracture Fixation
Profile : Core Dia 4.5mm, 3.5mm Hex. 9 TPI
Material : SS 316L & Titanium

Catalogue - for more technical details
