Locking Plate

Home Orthopaedics Implants Bone Plate Locking Plate

Dorsal Distal Radius Locking Plates Straight

Intended Use : For Internal Fixation with Distal Radius
Profile : 7.5mm x 2mm, 2.5/2.7mm Screw compatible, 0.7mm thread pitch
Material : SS 316L & Titanium

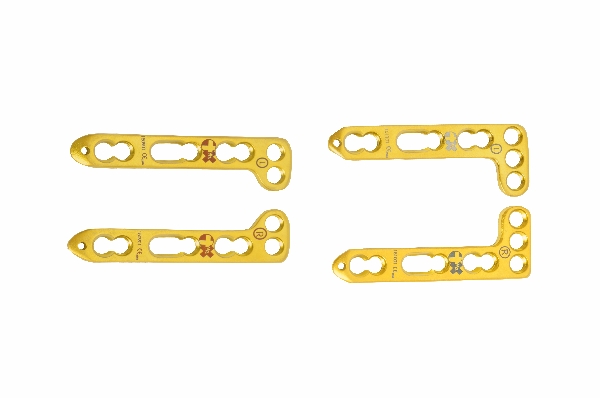

Dorsal Distal Radius Locking Plates L-90ᵒ Angled

Intended Use : For Internal Fixation with Distal Radius
Profile : 7.5mm x 2mm, 2.5/2.7mm Screw compatible, 0.7mm thread pitch
Material : SS 316L & Titanium

Dorsal Distal Radius Locking Plates L Oblique Angled

Intended Use : For Internal Fixation with Distal Radius
Profile : 7.5mm x 2mm, 2.5/2.7mm Screw compatible, 0.7mm thread pitch
Material : SS 316L & Titanium

Dorsal Distal Radius Locking Plates T Shape

Intended Use : For Internal Fixation with Distal Radius
Profile : 7.5mm x 2mm, 2.5/2.7mm Screw compatible, 0.7mm thread pitch
Material : SS 316L & Titanium

Two Column Distal Radius Lock. Plates

Intended Use : For Internal Fixation with Distal Radius
Profile : 10mm x 2mm, 2.5/2.7mm Screw compatible, 0.7mm thread pitch
Material : SS 316L & Titanium

Two Column Distal Radius Lock. Plates - 3.5mm + 4mm Holes Combination

Intended Use : For Internal Fixation with Distal Radius
Profile : 10mm x 2mm, 3.5/4mm Screw compatible, 0.8mm thread pitch
Material : SS 316L & Titanium

Volar Distal Radius Locking Plates Extra-Articular

Intended Use : For Internal Fixation with Distal Radius
Profile : 7.5mm x 2mm, 2.5/2.7mm Screw compatible, 0.7mm thread pitch
Material : SS 316L & Titanium

Volar Distal Radius Locking Plates Juxta-Articular

Intended Use : For Internal Fixation with Distal Radius
Profile : 7.5mm x 2mm, 2.5/2.7mm Screw compatible, 0.7mm thread pitch
Material : SS 316L & Titanium

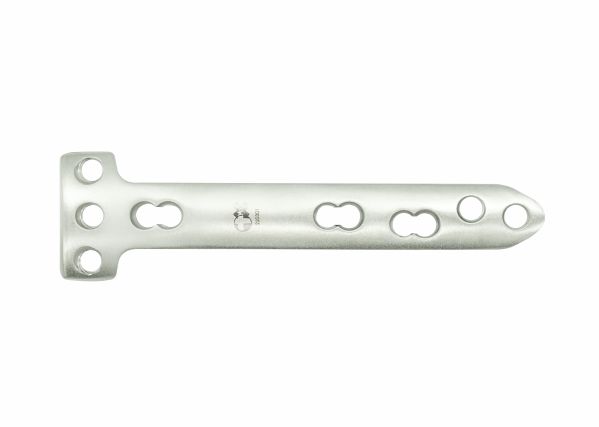

T' Locking Plates For Distal Radius - 3.5mm + 4mm Holes Combination

Intended Use : For Internal Fixation with Distal Radius
Profile : 10mm x 2mm, 3.5/4mm Screw compatible, 0.8mm thread pitch
Material : SS 316L & Titanium

Oblique 'T' Locking Plates For Distal Radius - 3.5mm + 4mm Holes Combination

Intended Use : For Internal Fixation with Distal Radius
Profile : 10mm x 2.5mm profile, 4mm compatible, 0.8mm thread pitch
Material : SS 316L & Titanium

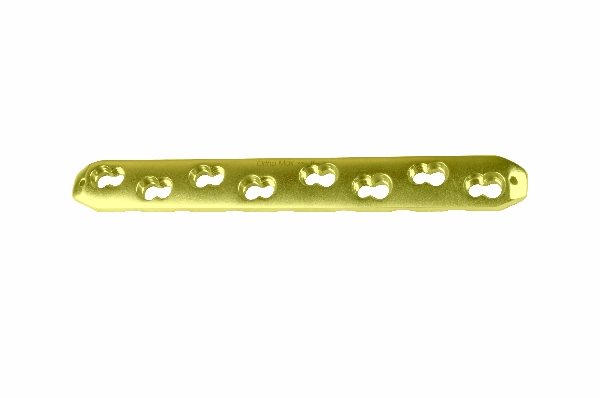

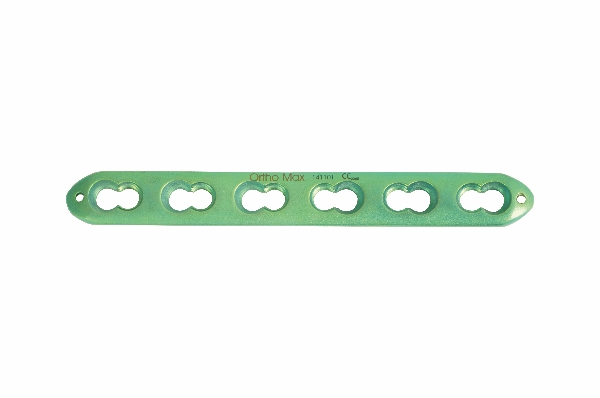

Dynamic Compression Locking Plates (DCLP) - Thin For Radius/Ulna

Intended Use : For Internal Fixation with Distal Radius
Profile : 10mm x 2.5mm profile, 4mm compatible, 0.8mm thread pitch
Material : SS 316L & Titanium

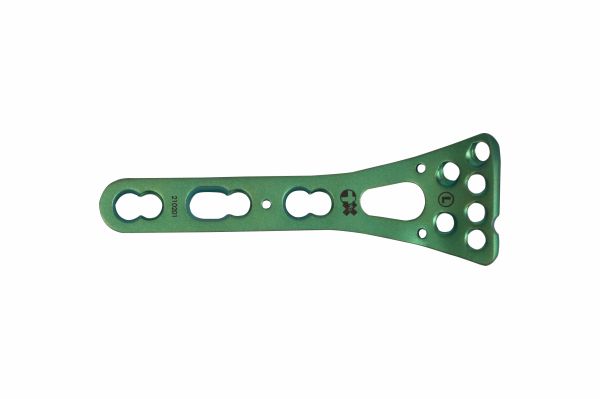

Proximal Humerus Multi Angle Locking Plates

Intended Use : For Internal Fixation of proximal Humerus Head & Shaft
Profile : 12mm x 3.5mm, 4mm compatible Screw, 0.8mm thread pitch
Material : SS 316L & Titanium

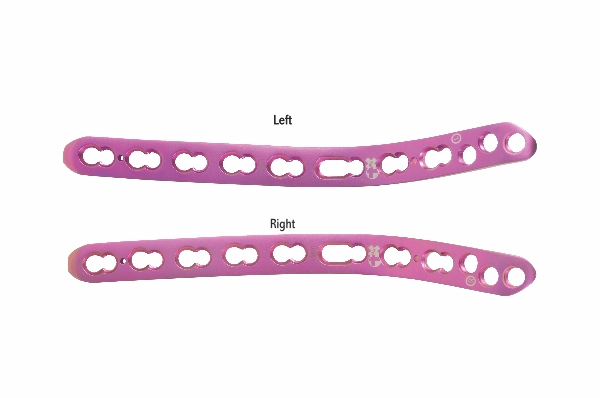

Distal Humerus Locking Plates Dorsolateral With Support

Intended Use : For Internal Fixation of Distal Humerus Condyle
Profile : 10mm x 3mm, 6 Distal Holes -3mm Screw compatible Shaft Holes 4mm Screw compatible, 0.8mm thread pitch
Material : SS 316L & Titanium

Distal Humerus Locking Plates Dorsolateral Without Support

Intended Use : For Internal Fixation of Distal Humerus Condyle
Profile : 10mm x 3mm, 4 Distal Holes -3mm Screw compatible Shaft Holes 4mm Screw compatible, 0.8mm thread pitch
Material : SS 316L & Titanium

Distal Humerus Locking Plates Medial

Intended Use : For Internal Fixation of Distal Humerus Condyle
Profile : 10mm x 3mm, 3 distal screws -3mm compatible, shaft screw 4mm compatible, 0.8mm thread pitch
Material : SS 316L & Titanium

Extra - Articular Distal Humerus Locking Plates

Intended Use : For Internal Fixation of Distal Humerus Condyle
Profile : 12mm x 3mm, 5 Distal Holes -3mm Screw compatible, shaft Hole 4mm Screw compatible, 0.8mm thread pitch
Material : SS 316L & Titanium

Olecronan Locking Plates

Intended Use : For Internal Fixation of Olecronan
Profile : 10mm x 2.5mm, 8 Proximal Holes -3mm Screw compatible, Shaft Hole 4mm Screw compatible, 0.8mm thread pitch
Material : SS 316L & Titanium

Superior Clavicle Locking Plate (Without Lateral Extension)

Intended Use : For Internal Fixation of Medial Clavicle Bone
Profile : 10mm x 3mm, 4mm Compatible Screws
Material : SS 316L & Titanium

Superior Clavicle Locking Plate with Lateral Extension

Intended Use : For Internal Fixation of Lateral Clavicle Bone
Profile : 10mm x 3mm, Head 2.5mm Compatible Screws, Shaft 4mm Compatible Screws
Material : SS 316L & Titanium

Clavical Hook Locking Plate

Intended Use : For Internal Fixation of Clavicle Head
Profile : 10mm x 3mm, 4mm Compatible Screws
Material : SS 316L & Titanium

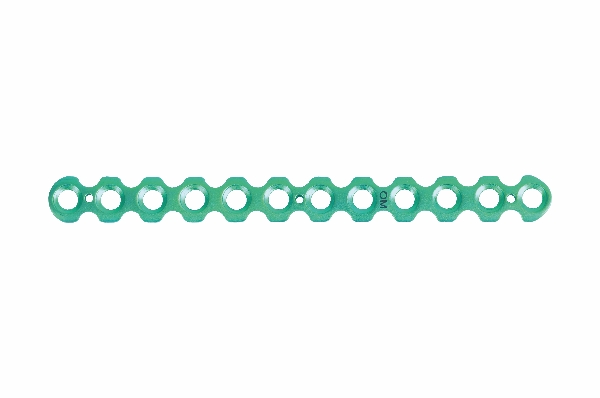

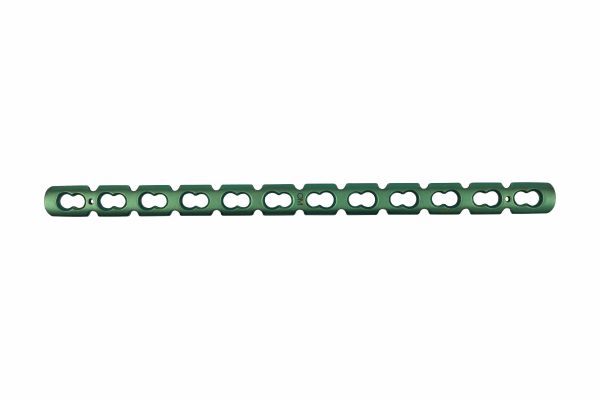

Reconstruction Locking Plate - 4mm

Intended Use : For Internal Fixation of Small Fragment & Acetabulam
Profile : 10mm x 3mm, 4mm Compatible Screws
Material : SS 316L & Titanium

Reconstruction Locking Plate 3.5+4mm Combi Holes

Intended Use : For Internal Fixation of Small Fragment
Profile : 10mm x 3mm, 4mm Screws Compatible, 0.8mm thread pitch
Material : SS 316L & Titanium

Distal Fibula Locking Plates

Intended Use : For Internal Fixation of Distal Fibula
Profile : 10mm x 2.5mm, 6 Distal Hole -2.5mm Screw compatible Shaft Holes 4mm Screw compatible, 0.8mm threat pitch
Material : SS 316L & Titanium

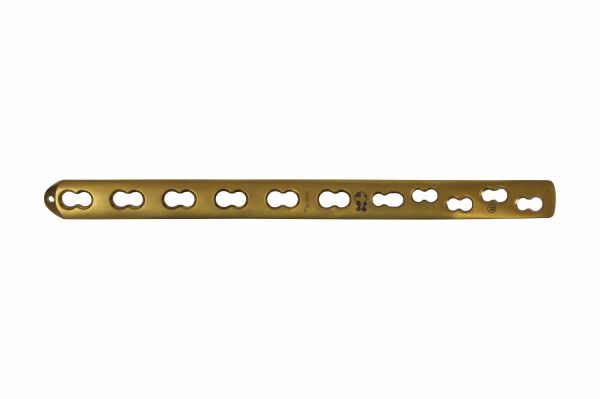

Dynamic Compression Locking Plates (DCLP) - Narrow For Tibia/Humerus - 12mm

Intended Use : For Internal Fixation of Tibia/Humerus Shaft
Profile : 12mm x 4mm, 5mm Screw Compatible, 1mm thread pitch
Material : SS 316L & Titanium

Broad For Femur - 16mm

Intended Use : For Internal Fixation of Shaft Femur
Profile : 16mm x 4.5mm, 5mm Screw Compatible, 1mm thread pitch
Material : SS 316L & Titanium

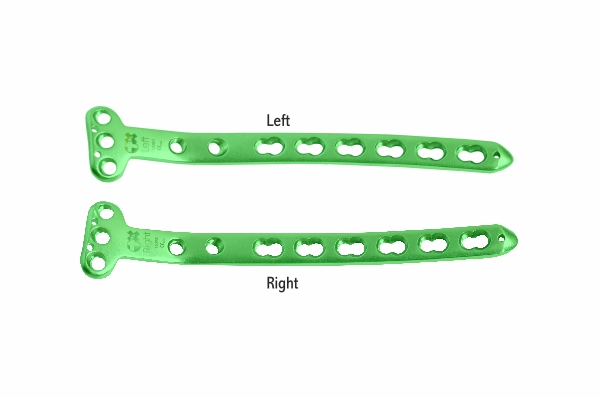

Buttress 'T' Locking Plates

Intended Use : For Internal Fixation of Proximal Tibial Condyle
Profile : 16mm x 2.5mm, proximal hole 5+6.5mm Screw Compatible, 1mm thread pitch
Material : SS 316L & Titanium

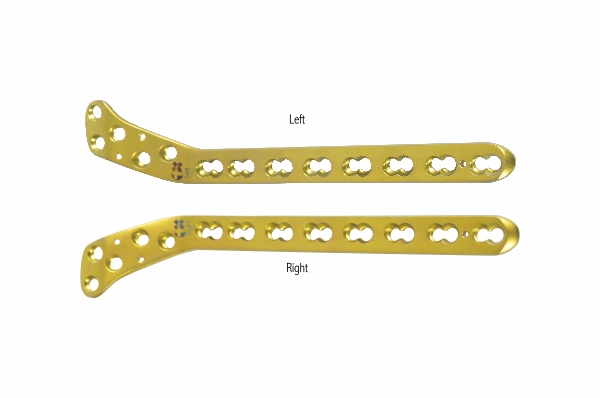

Buttress 'L' Locking Plates

Intended Use : For Internal Fixation of Proximal Tibial Condyle
Profile : 16mm x 2.5mm, proximal hole 5+6.5mm Screw Compatible, 1mm thread pitch
Material : SS 316L & Titanium

Lateral Tibial Head Locking Plates - 5mm

Intended Use : For Internal Fixation of Proximal Tibial Condyle
Profile : 16mm x 4.5mm, 5mm Screw Compatible, 1mm thread pitch
Material : SS 316L & Titanium

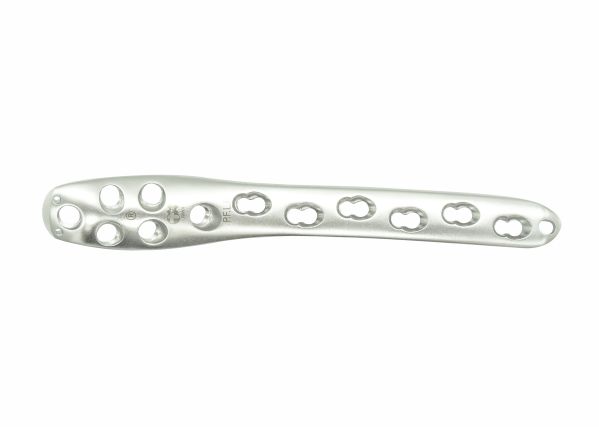

Peri - Articular Proximal Tibia Locking Plates

Intended Use : For Internal Fixation of Proximal Tibial Condyle
Profile : 13mm x 4mm, 4mm Screw Compatible Screws, 0.8mm thread pitch
Material : SS 316L & Titanium

Proximal Medial Tibial Locking Plates

Intended Use : For Internal Fixation of Proximal Tibial Condyle
Profile : 11mm x 4mm, 4mm Compatible Screws, 0.8mm thread pitch
Material : SS 316L & Titanium

Posterior Medial Proximal Tibia Plates

Intended Use : For Internal Fixation of Posterior Medial Proximal Tibia
Profile : 12mm x 3.5mm, 6 Distal Hole -2.5mm Screw compatible Shaft Holes 4mm Screw compatible, 0.8mm thread pitch
Material : SS 316L & Titanium

Anterolateral Distal Tibia Locking Plates

Intended Use : For Internal Fixation of Lateral Distal Tibial Condyle
Profile : 13mm x 4mm, compatible Screw, 0.8mm threat pitch
Material : SS 316L & Titanium

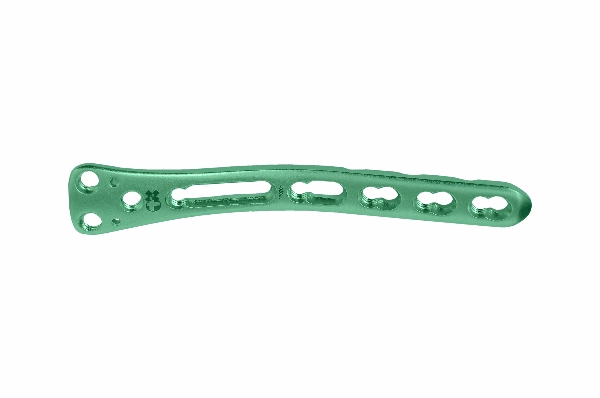

Low Bend Distal Tibia locking Plates

Intended Use : For Internal Fixation of Distal Medial Tibial Condyle
Profile : 14mm x 4mm, 4mm compatible Screw, 0.8mm threat pitch
Material : SS 316L & Titanium

Metaphyseal Distal Tibia Locking Plates

Intended Use : For Internal Fixation of Medial Distal Tibial Condyle
Profile : 14mm x 4mm, Distal 5 holes - 4mm Compatible Screw, Shaft Holes 5mm Compatible Screws
Material : SS 316L & Titanium

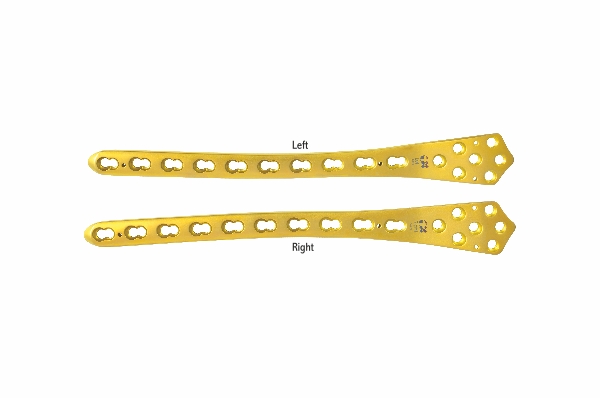

Distal Femur Locking Plates - 5mm

Intended Use : For Internal Fixation of Distal Femur Condyle
Profile : 16mm x 5.5mm, 5mm Compatible Screws, 1mm thread pitch
Material : SS 316L & Titanium

Proximal Femur Locking Cobra Head Plates

Intended Use : For Internal Fixation of Proximal Femur Condyle
Profile : 16mm x 5.5mm, 6.5mm in Proximal part & 5mm in shaft Screws Compatible, 1mm thread pitch
Material : SS 316L & Titanium

Medial High Tibial Oste. Lock.plates(MHTO)

Intended Use : For Primary or secondary Medial compartment degenerative arthritis
Profile : 15mm x 3mm, 5mm Screws Compatible, 1mm thread pitch
Material : SS 316L & Titanium

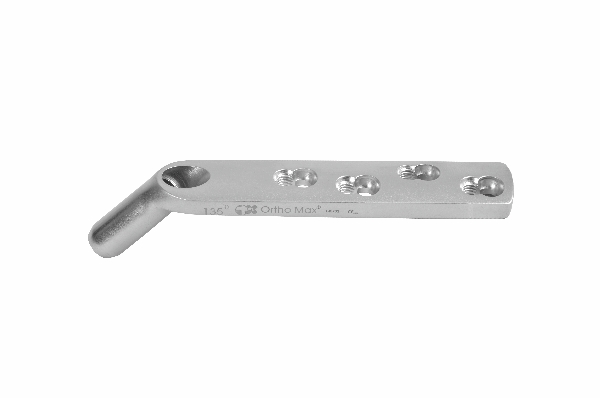

Richard's Barrel Locking Plate

Intended Use : For Internal Fixation of Trochanter with Hip Screws
Profile : 19mm x 6mm, 5mm compatible Screw, 1mm thread pitch, barrel 32mm
Material : SS 316L

Calcaneal Locking Plates with Tab

Intended Use : For Internal Fixation of Calcaneal Fracture
Profile : 4mm x 1mm, 4mm Screws Compatible, 0.8mm thread pitch
Material : SS 316L & Titanium

Lateral Support Locking Plate For Pfn

Intended Use : For Fixation of Lateral part of Greater Trochanter with PFN
Profile : 16mm x 2mm, 4mm in Proximal part & 4.5 & 5mm Screws Compatible in shaft part, 0.8mm thread pitch
Material : SS 316L

Locking Plate

Catalogue - for more technical details
