Cortical locking screw Manufacturing by Ortho Max

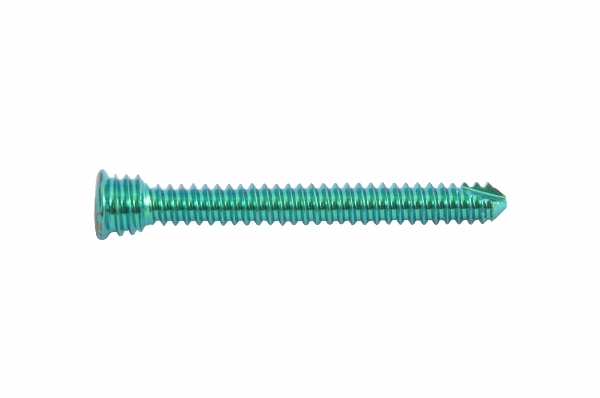

Cortical Locking Screw - 2.5mm

Intended Use : For Internal Fixation with Locking Plates
Profile : Core dia. 2mm, 36 TPI, 2mm Hex. Self Tapping
Material : SS 316L & Titanium

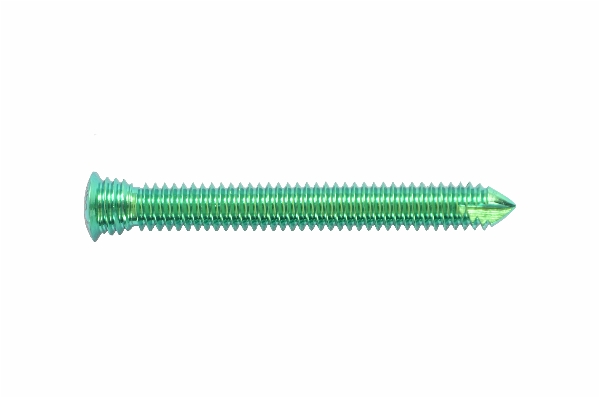

Cortical Locking Screw - 3mm

Intended Use : For Internal Fixation with Locking Plates
Profile : Core dia. 2.2mm, 36 TPI, 2.5mm Hex. Self Tapping
Material : SS 316L & Titanium

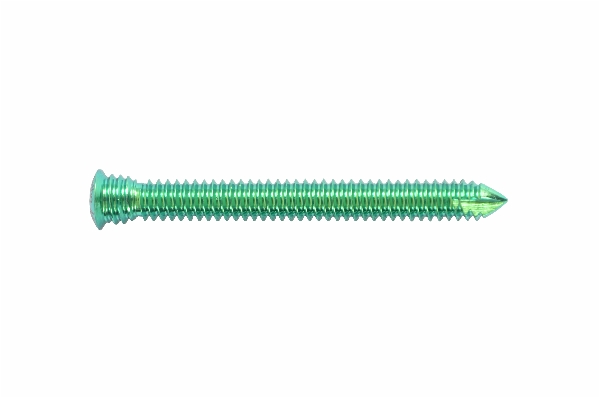

Cortical Locking Screw - 4mm

Intended Use : For Internal Fixation with Locking Plates
Profile : Core dia. 3.2mm, 26 TPI, 0.8mm head pitch 2.5 Hex. Self Tapping
Material : SS 316L & Titanium

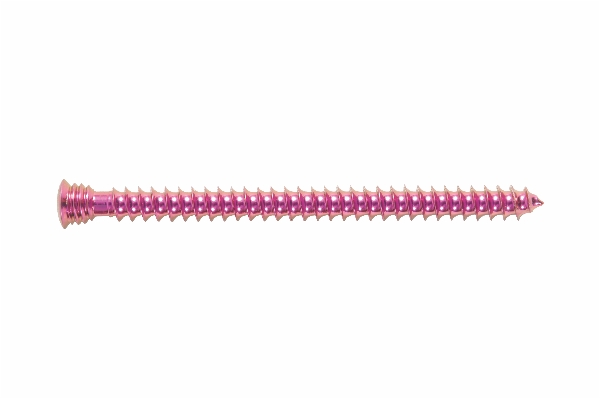

Cancellous Locking Screw - 4mm

Intended Use : For Internal Condyler Fixation with Locking Plates
Profile : Core dia. 2.5mm, 14 TPI, 2.5mm Hex. Self Tapping
Material : SS 316L & Titanium

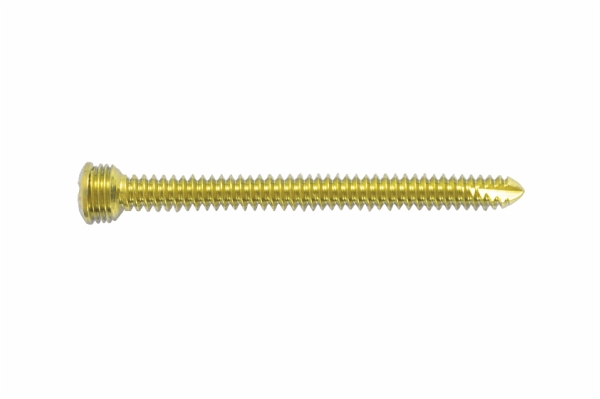

Cortical Locking Screw - 5mm

Intended Use : For Internal Fixation with Locking Plates
Profile : Core dia. 4mm, 24 TPI, 1mm head pitch 3.5mm Hex. Self Tapping
Material : SS 316L & Titanium

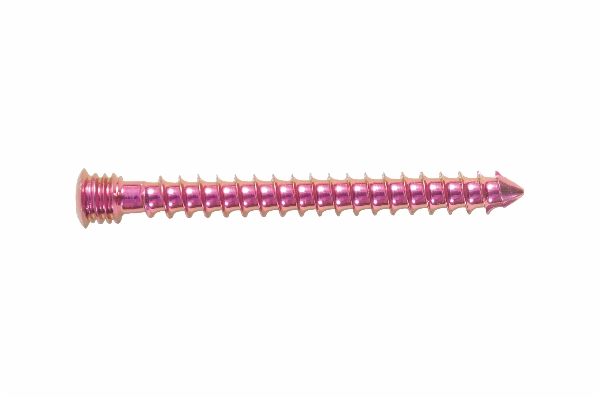

Cancellous Locking Screw - 5mm

Intended Use : For Internal Fixation with Locking Plates
Profile : Core dia. 3.5mm, 14 TPI, 1mm head pitch 3.5mm Hex. Self Tapping
Material : SS 316L & Titanium

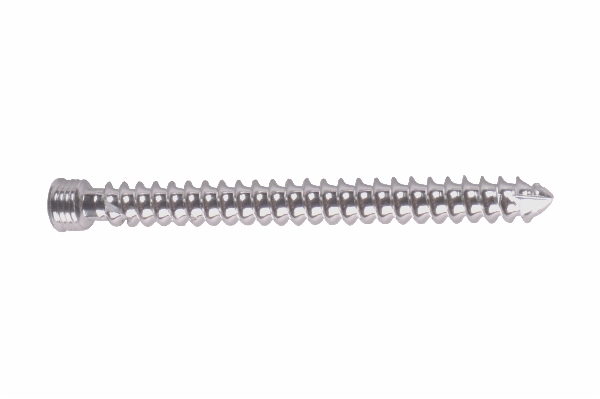

Cancellous Locking Screw - 6.5mm

Intended Use : For Internal Fixation with Locking Plates
Profile : Core dia. 4.5mm, 9 TPI, 1mm head pitch 3.5mm Hex. Self Tapping
Material : SS 316L & Titanium

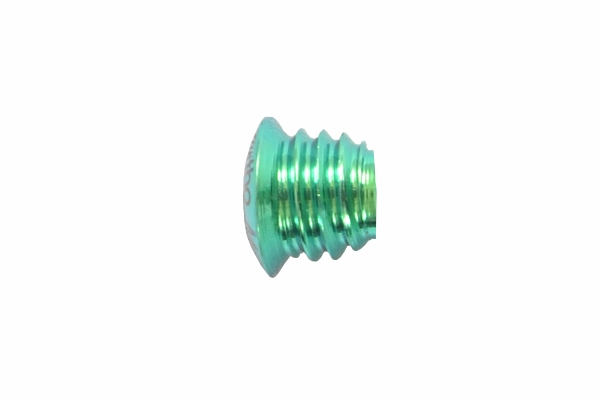

Cap for Locking Plate - 4mm

Intended Use : To Safe guard hole profile while bending & Plugging black Hole
Profile : 0.8mm Thread Pitch, 2.5mm & 3.5mm Hex.
Material : SS 316L & Titanium

Intended Use : To Safe guard hole profile while bending & Plugging blank Holes
Profile : 0.8mm thread pitch for 4mm & 1mm thread pitch for 5mm, 2.5mm & 3.5mm Hex.
Material : SS 316L & Titanium

Cannulated Cancellous Locking Screw - 6.5mm Full Thread

Intended Use : For Internal Fixation with Locking Plates
Profile : Core dia. 4.5mm, 9 TPI, 1mm head pitch 3.5mm Hex. Self-Tapping
Material : SS 316L
